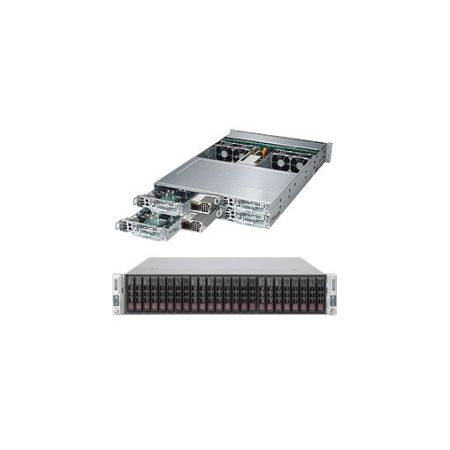

Supermicro SuperServer 2027PR-HTTR Barebone System - 2U Rack-mountable - Intel C606 Chipset - 4 Number of Node(s) - Socket R LGA-2011 - 2 x Processor Support - Black Item # 860563
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
860563
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end PC/server industry. After all, Supermicro provides the most outstanding product line in the industry, ranging from single Pentium 4 and dual Xeon to quad Xeon MP and dual Itanium systems. Their proven high level of quality and performance has made SuperServers the platform of choice for supercomputer clusters and enterprise databases as well as business-critical, front-end server applications.
Product Details
| Item # | 860563 |
| Manufacturer # | TY0697 |
| Number of SATA Interfaces | 6 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| RAID Levels | 0, 1, 10 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 2 kW |
| height | 3.5 in |
| Certifications & Standards | ACPI 1.0; ACPI 2.0 |
| Total Number of USB Ports | 2 |
| Graphics Controller Manufacturer | Matrox |
| Power Supply Capacity | 2x2000 Watt |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 2027PR-HTTR (Black); 4 x Super X9DRT-PT Motherboard; 1 x 2U Chassis; 4 x Backplan Adapter Card; 6SATA ports,RoHS/REACH,PBF; 1 x ,RoHS/REACH,PBF 2U Twin Square Backplane, support 24 SAS3/SATA3 HDD (2.5") with Hot Swapping. Per node for 6 HDDs. PWM fan control, HDD spin up and failure LED supported.; 4 x RSC-R1U-E16R; 4 x 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM; 4 x 1U Passive Front CPU Heat Sink for X9 2U Twin^2+ Series Servers |
| depth | 28.5 in |
| Product Name | SuperServer 2027PR-HTTR (Black) |
| QuickPath Interconnect Supported | Yes |
| Number of PCI Express x16 Slots | 1 |
| Rack Height | 2U |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Cluster Configuration | 4 - computing node |
| VGA | Yes |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 1 TB |
| Number of Total Memory Slots | 16 |
| controller type | Serial ATA/600; Serial ATA/300 |
| Input Voltage | 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 2 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Memory Standard | DDR3-1866/PC3-15000 |
| Number of Internal 2.5" Bays | 6 |
| Shared Storage Power Supply | 2 redundant hot plug power supplies |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 1 |
| Processor Socket | Socket R LGA-2011 |
| Chipset Model | C606 |
| Number of Total Expansion Bays | 6 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200eW |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | 1 TB - Load-Reduced - ECC ¦ 512 GB - registered - ECC |
| color | black |
| Number of Nodes | 4 |
| warranty length | 3-year limited |
| model name | 2027PR-HTTR |
| QuickPath Interconnect | 8 GT/s |
